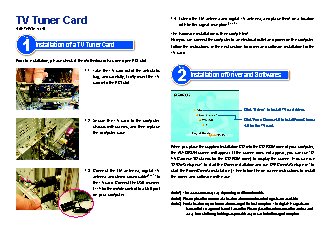

TV Tuner Card 12QM-TVPCI01-1001R 1 Installation of a TV Tuner Card 1-4 Extend the FM antenna and digital TV antenna, and place them on a location with better signal reception (Note 3). The hardware installation is then completed! Now you can connect the computer to an electrical outlet and power on the computer. Follow the instructions in the next section for driver and software installation for the TV card. Prior to installation, please check if the motherboard has one open PCI slot. 1-1 Take the TV card out of the anti-static bag, and carefully, firmly insert the TV card into the PCI slot. 2 Installation of Driver and Softwares Click "Driver" to install TV card driver. 1-2 Secure the TV card to the computer chassis with screws, and then replace the computer case. 1-3 Connect the FM antenna, digital TV antenna and stereo sound cable(Note 1) to the TV card. Connect the USB receiver (Note 2) for the remote control to a USB port on your computer. Click "Power Cinema 4.0" to install PowerCinema 4.0 for the TV card. When you place the supplied Installation CD into the CD-ROM drive of your computer, the AUTORUN screen will appear. If the screen does not appear, you can run "D:…
